| 是否进口：否 | 产地：上海 | 生产方式：无缝管 |
| 材质：316L | 产地/厂家：进口 | 用途范围：太阳能、 金属制品、 机械制造、 压力容器、 核电、 化工设备 |
| 加工服务：深加工（冲压、折弯等） | 配送服务：可配送到厂 | 货物销售类型：期货 |
| 规格：1/4、3/8、9/16 | 是否可定制：否 | 是否可加工：是 |
| 加工工艺：其他 | 仓库地址：上海 | 仓库电话：021-64193756 |
| 产品表面描述：无缝钢管 | 表面：其他 |

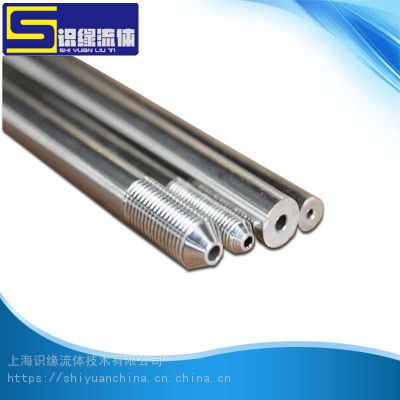

德国SMT、德国MO等超高压钢管
超高压钢管（0-1000MPA）高压系统连接管
连接管 | 连接管钢管尺寸(O.D.× I.D.) | ||
长度 | 1/4" O.D.× 1/16" I.D. | 3/8" O.D.× 1/16" I.D. | |
(316SS) | (304SS) | (304SS) | |
MPA | 690 | 690 | 1034 |
23/4 " | 100-XM4-2.75 | 100-XM4-2.75 |
|
4" |
|
| 150-XM6-4 |
6" | 100-XM4-6 | 100-XM4-6 | 150-XM6-6 |
8" | 100-XM4-8 | 100-XM4-8 | 150-XM6-8 |
10" | 100-XM4-10 | 100-XM4-10 | 150-XM6-10 |
12" | 100-XM4-12 | 100-XM4-12 | 150-XM6-12 |
连接管 | 连接管钢管尺寸(O.D.× I.D.) | ||||||
长度(") | 1/4"O.D.× 7/64" I.D. | 3/8"O.D.× 13/64" I.D. | 9/16"O.D.× 5/16" I.D. | 3/4"O.D.× 33/64" I.D. | 3/4" O.D.× 7/16" I.D. | 1" O.D.× 11/16" I.D. | 1" O.D.× 9/16" I.D. |
MPA | 138 | 138 | 138 | 69 | 138 | 69 | 138 |
2 3/4 " | 20-LM4-2.75 |
|
|
|
|
|
|
3" |
| 20-LM6-3 |
|
|
|
|
|
4" |
|
| 20-LM9-4 | 10-LM12-4 | 20-LM12-4 |
|
|
6" | 20-LM4-6 | 20-LM6-6 | 20-LM9-6 | 10-LM12-6 | 20-LM12-6 | 10-LM16-6 | 20-LM16-6 |
8" | 20-LM4-8 | 20-LM6-8 | 20-LM9-8 | 10-LM12-8 | 20-LM12-8 | 10-LM16-8 | 20-LM16-8 |
10" | 20-LM4-10 | 20-LM6-10 | 20-LM9-10 | 10-LM12-10 | 20-LM12-10 | 10-LM16-10 | 20-LM16-10 |
12" | 20-LM4-12 | 20-LM6-12 | 20-LM9-12 | 10-LM12-12 | 20-LM12-12 | 10-LM16-12 | 20-LM16-12 |
长度(") | 1/8" × 0.020" | 1/8" × 0.040" | 1/8" × 0.083" | 3/8" × 1/8" | 9/16" ×3/16" | 9/16" ×3/16" | 1" × 0.437" |
MPA | 414 | 207 | 414 | 414 | 276 | 414 | 207 |
2" | 60-HM2-2 | 30-HM2-2 |
|
|
|
|
|
2 3/4 " |
|
| 60-HM4-2.75 |
|
|
|
|
3" | 60-HM2-3 | 30-HM2-3 |
| 60-HM6-3 |
|
|
|
4" | 60-HM2-4 | 30-HM2-4 |
|
| 40-HM9-4 | 60-HM9-4 |
|
6" | 60-HM2-6 | 30-HM2-6 | 60-HM4-6 | 60-HM6-6 | 40-HM9-6 | 60-HM9-6 |
|
8" |
|
| 60-HM4-8 | 60-HM6-8 | 40-HM9-8 | 60-HM9-8 | 30-HM16-8 |
9" | 60-HM2-9 | 30-HM2-9 |
|
|
|
| 30-HM16-9 |
10" |
|
| 60-HM4-10 | 60-HM6-10 | 40-HM9-10 | 60-HM9-10 | 30-HM16-10 |
12" | 60-HM2-12 | 30-HM2-12 | 60-HM4-12 | 60-HM6-12 | 40-HM9-12 | 60-HM9-12 | 30-HM16-12 |
规格 | 钢管尺寸 | MPA | 连接形式 | 材质 | 型号 |
1/16" | 1/16" O.D.× 0.006" I.D. | 103 | 1/16" TAPER SEAL(AF1) | 316SS | 15-9A1-006 |
1/16" O.D.× 0.030" I.D. | 15-9A1-030 | ||||
1/8" | 1/8" O.D.× 0.060" I.D. | 103 | 1/8" TAPER SEAL(AF2) | 316SS | 15-9A2 |
1/4" | 1/4" O.D.× 1/8" I.D. | 69 | 1/4" TAPER SEAL(AF4) | 316SS | 10-9A4-316 |
304SS | 10-9A4-304 | ||||
3/8" | 3/8" O.D.× 1/4" I.D. | 69 | 3/8" TAPER SEAL(AF6) | 316SS | 10-9A6-316 |
304SS | 10-9A6-304 | ||||
1/4" | 1/4" O.D.× 0.109" I.D. | 138 | 1/4" MEDIUN PRESSURE(LF4) | 316SS | 20-9M4-316 |
3/8" | 3/8" O.D.× 0.203" I.D. | 138 | 3/8" MEDIUN PRESSURE(LF6) | 316SS | 20-9M6-316 |
9/16" | 9/16" O.D.× 0.359" I.D. | 69 | 9/16" MEDIUN PRESSURE(LF9) | 316SS | 10-9M9-316 |
304SS | 20-9M9-304 | ||||
9/16" O.D.× 0.312" I.D. | 138 | 316SS | 10-9M9-316 | ||
3/4" | 3/4" O.D.× 0.516" I.D. | 69 | 3/4" MEDIUN PRESSURE(LF12) | 316SS | 10-9M12-316 |
3/4" O.D.× 0.438" I.D. | 138 | 10-9M12-316 | |||
1" | 1" O.D.× 0.688" I.D. | 69 | 1" MEDIUN PRESSURE(LF16) | 316SS | 10-9M16-316 |
1" O.D.× 0.562" I.D. | 138 | 10-9M16-316 | |||
1/8" | 1/8" O.D.× 0.020" I.D. | 414 | 1/8" HIGH PRESSURE(HF2) | 316SS | 60-9H2 |
1/8" O.D.× 0.040" I.D. | 207 | 1/8" HIGH PRESSURE(HF2) | 316SS | 30-9H2 | |
1/4" | 1/4" O.D.× 0.083" I.D. | 414 | 1/4" HIGH PRESSURE(HF4) | 316SS | 60-9H4-316 |
304SS | 60-9H4-304 | ||||
3/8" | 3/8" O.D.× 1/8" I.D. | 414 | 3/8" HIGH PRESSURE(HF6) | 316SS | 60-9H6-316 |
304SS | 60-9H6-304 | ||||
9/16" | 9/16" O.D.× 3/16" I.D. | 414 | 9/16" HIGH PRESSURE(HF9) | 316SS | 60-9H9-316 |
304SS | 60-9H9-304 | ||||
9/16" | 9/16" O.D.× 1/4" I.D. | 276 | 9/16" HIGH PRESSURE(HF9) | 316SS | 40-9H9-316 |
304SS | 40-9H9-304 | ||||
1" | 1" O.D.× 0.437" I.D. | 207 | 1/8" HIGH PRESSURE(HF2) | 316SS | 30-9H16-316 |
1/4" | 1/4" O.D.× 1/16" I.D. | 690 | 1/4" ULTRA HIGH PRESSURE(XF4) | 316SS | 100-9X4-316 |
304SS | 100-9X4-304 | ||||
3/8" | 3/8" O.D.× 1/16" I.D. | 1034 | 3/8" ULTRA HIGH PRESSURE(XF6) | 304SS | 150-9X6 |
